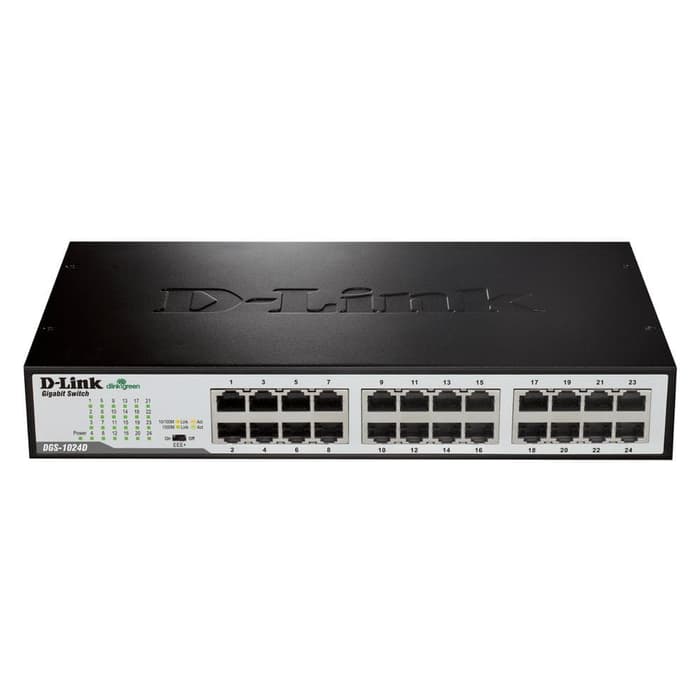

SWITCH D-LINK DGS-1024D 24-PORT GIGABIT METAL RACKMOUNT

1.000.000,00
DESCRIPTION

  •  Key Features : Innovative 2nd Generation D-Link Green technology, Inexpensive Gigabit solution for Soho/ SMb, Silent, fanless design, Auto MDi/MDi-X crossover for all ports, Store-and-forward switching scheme, Full/half-duplex for ethernet/Fast ethernet speeds, IEEE 802.3x Flow control, Supports 9,600bytes Jumbo Frames, Supports ieee 802.1p QoS (4 Queues, Strict Mode), Supports cable Diagnostics Function, RoHS compliant, Plug-and-play installation
  • Number of Ports : DGS-1016D: 16 Gigabit ports, DGS-1024C: 24 Gigabit ports
  • Switching Fabric : DGS-1016D: 32 Gbps switching fabric, DGS-1024C: 48 Gbps switching fabric
  • Standards : IEEE 802.3 10BASE-T Ethernet (twisted pair copper), IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper), IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper), ANSI/IEEE 802.3 Nway auto-negotiation, IEEE 802.3x Flow control, IEEE 802.1P QoS (4 queues, strict mode)
  • Protocol : CSMA/CD
  • Data transfer Rates : Ethernet:, 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full duplex)
  • Topology : Star
  • Network Cables : 10BASE-T:, UtP cat 3, 4, 5/5e (100 m max.), EIA/TIA-586 100-ohm StP (100 m max.), 100BASE-TX, 1000baSe-t: UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm StP (100 m max.)
  • Media Interface Exchange : Auto MDI/MDI-X adjustment for all ports
  • LED Indicators : Per Port: Link/activity/Speed, Per device: Power
  • Transmission Method : Store-and-forward
  • MAC Address Table : 8k entries per device
  • MAC Address Learning : Automatic Update
  • Packet Filtering/Forwarding Rates (Half Duplex) : Ethernet: 14,880 pps per port, Fast ethernet: 148,800 pps per port, Gigabit Ethernet: 1,488,000 pps per port
  • RAM Buffer : 512 kb per device
  • Power Consumption : DGS-1016D, Standby: 3.8 watts, Maximum: 11.7 watts, DGS-1024
